Features
- High Speed Operation: tpd = 7.5 ns typ (CL = 50 pF)
- High Output Current: Fanout of 10 LSTTL Loads
- Wide Operating Voltage: VCC = 2 to 6 V
- Low Input Current: 1 μA max
- Low Quiescent Supply Current: ICC (static) = 1 μA max (Ta = 25°C)

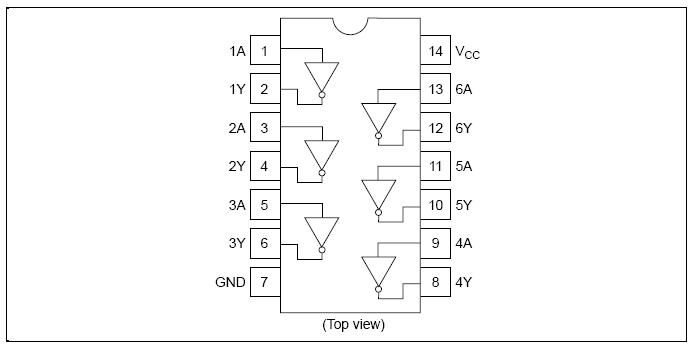

Pin Arrangement
ORDERING INFORMATION
|
Part Name |
Package Type |
Package Code (Previous Code) |
Package Abbreviation |
Taping Abbreviation (Quantity) |
|
HD74HC04P |
DILP-14 pin |
PRDP0014AB-B (DP-14AV) |
P |
— |
|
HD74HC04FPEL |
SOP-14 pin (JEITA) |
PRSP0014DF-B (FP-14DAV) |
FP |
EL (2,000 pcs/reel) |
|
HD74HC04RPEL |
SOP-14 pin (JEDEC) |
PRSP0014DE-A (FP-14DNV) |
RP |
EL (2,500 pcs/reel) |
|
HD74HC04TELL |
TSSOP-14 pin |
PTSP0014JA-B (TTP-14DV) |
T |
ELL (2,000 pcs/reel) |
FUNCTION TABLE
|
Input |
Output |
|
A |
Y |
|
L |
H |
|
H |
L |
ABSOLUTE MAXIMUM RATINGS
|
Item |
Symbol |
Ratings |
Unit |
|
Supply voltage range |
VCC |
–0.5 to 7.0 |
V |
|
Input / Output voltage |
Vin, Vout |
–0.5 to VCC +0.5 |
V |
|
Input / Output diode current |
IIK, IOK |
±20 |
mA |
|
Output current |
IO |
±25 |
mA |
|
VCC, GND current |
ICC or IGND |
±50 |
mA |
|
Power dissipation |
PT |
500 |
mW |
|
Storage temperature |
Tstg |
–65 to +150 |
°C |
