Description

The HA17339A and HA17339 series products are comparators designed for general purpose, especially for power control systems.
These ICs operate from a single power-supply voltage over a wide range of voltages, and feature a reducedpower-supply current since the supply current is independent of the supply voltage.
These comparators have the merit which ground is included in the common-mode input voltage range at a single-voltage power supply operation. These products have a wide range of applications, including limit comparators, simple A/D converters, pulse/square-wave/time delay generators, wide range VCO circuits,
MOS clock timers, multivibrators, and high-voltage logic gates

Features

•   Wide power-supply voltage range: 2 to 36 V
•   Very low supply current: 0.8 mA
•   Low input bias current: 25 nA
•   Low input offset current: 5 nA
•   Low input offset voltage: 2 mV
•   The common-mode input voltage range includes ground.
•   Low output saturation voltage: 1 mV (5 mA), 70 mV (1 mA)
•   Output voltages compatible with CMOS logic systems

          (  Features only for “A” series)

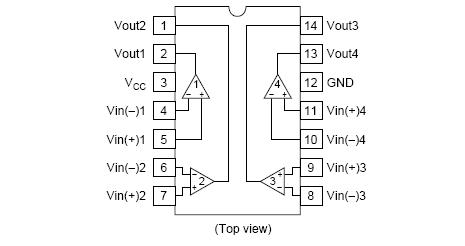

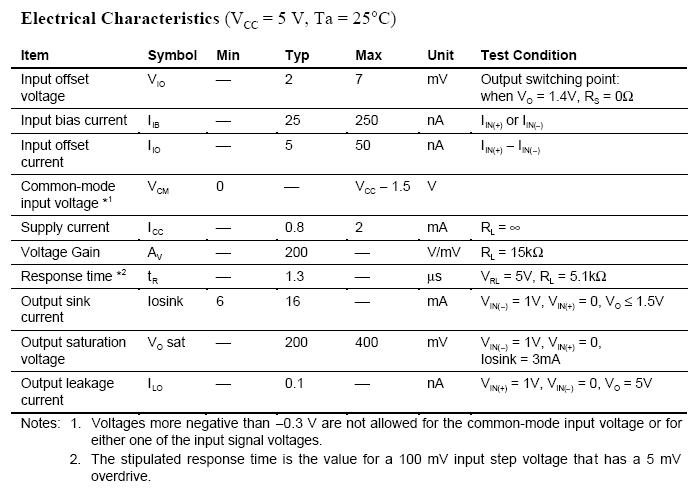

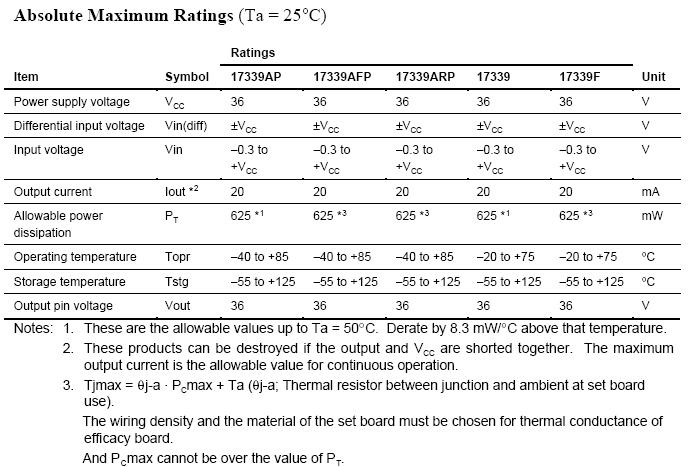

Pin Arrangement
