Description

HA17358B is dual operational amplifiers that provide high gain and internal phase compensation, with single power
supply. Operation from split power supply is also possible and the low power supply current drain is independent of the
magnitude of the power supply voltages. They can be widely applied to control equipment and to general use.

Features

•  Wide range of supply voltage
    Single supply: 3 V to 36 V, Dual supplies: ±1.5 V to ±18 V
•  Wide range of common mode voltage, and possible to operate with an input about 0 V, and output around 0 V is available.
•  Internally frequency compensated for unity gain.
•  Common mode input voltage range includes ground.
•  Package outline available in Pb free lead frame:
   DP-8
   SOP-8 (JEITA)
   SOP-8 (JEDEC)

Applications

•  Battery charger
•  Cordless telephone
•  Switching power supply

Ordering Information

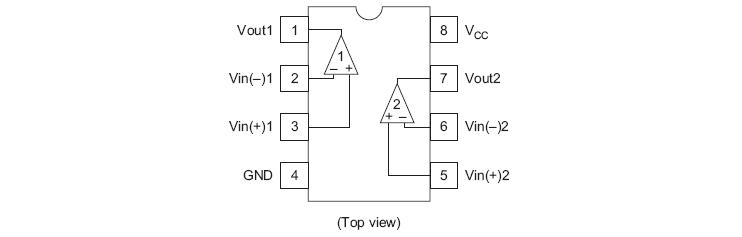

Pin Arrangement
