Description

This 8-bit serial shift register shifts data from QA to QH when clocked. Parallel inputs to each stage are enabled by a low level at the Shift/Load input. Also included is a gated clock input and a complementary output from the eighth bit.
Clocking is accomplished through a 2-input NOR gate permitting one input to be used as a clock inhibit function. Holding either of the clock inputs high inhibits clocking, and holding either clock input low with the Shift/Load input high enables the other clock input. Data transfer occurs on the positive going edge of the clock. Parallel loading is inhibited as long as the Shift/Load input is high. When taken low, data at the parallel inputs is loaded directly into the register independent of the state of the clock.

Features

•   High Speed Operation: tpd (Clock to QH) = 21 ns typ (CL = 50 pF)
•   High Output Current: Fanout of 10 LSTTL Loads
•   Wide Operating Voltage: VCC = 2 to 6 V
•   Low Input Current: 1 mA max
•   Low Quiescent Supply Current: ICC (static) = 4 mA max (Ta = 25°C)

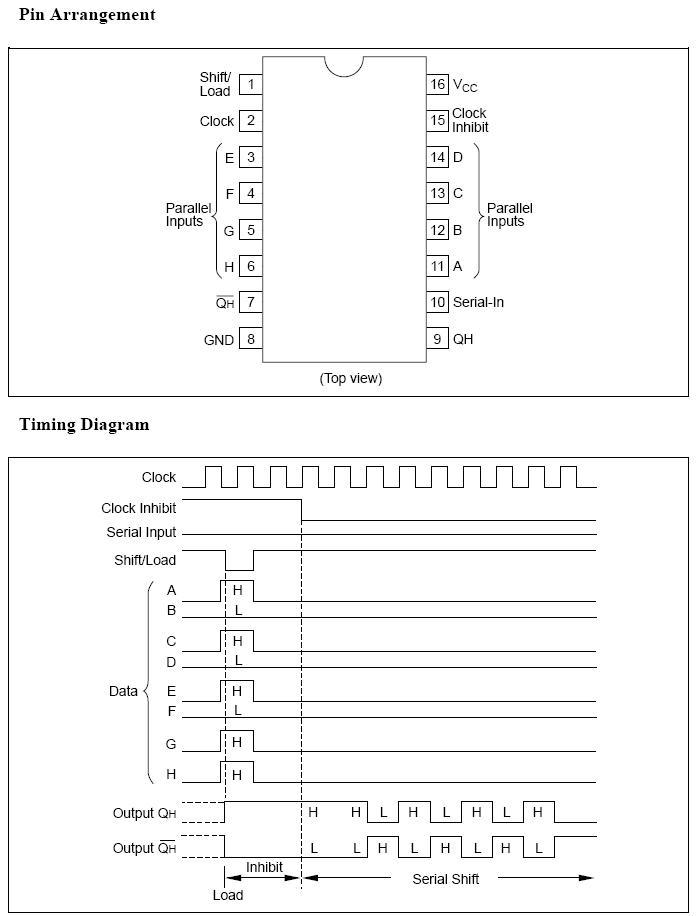

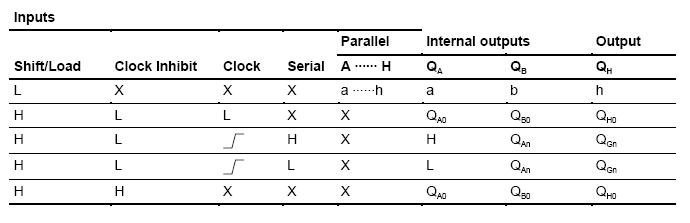

Function Table

Ordering Information
