Description

The R1LV0808ASB is a family of low voltage 8-Mbit static RAMs organized as 1,048,576-words by 8-bit,fabricated by Renesas's high-performance 0.15um CMOS and TFT technologies.
The R1LV08808ASB is suitable for memory applications where a simple interfacing, battery operating and battery backup are the important design objectives.

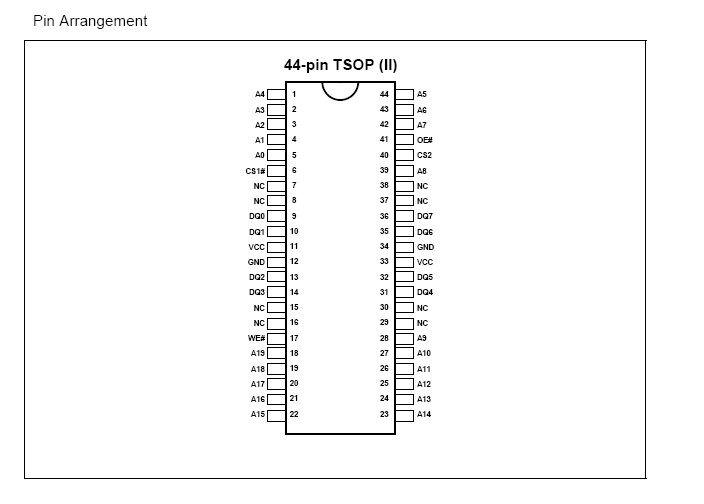

The R1LV0808ASB is packaged in a 44pin thin small outline mount device [11.76mm×18.41mm 44-pin plastic TSOP (II)]. It gives the best solution for a compaction of mounting area as well as flexibility of wiring pattern of printed circuit boards.

Features

・ Single 2.4-3.6V power supply
・ Small stand-by current: 1.2μA (Vcc=3.0V, typ.)
・ No clocks, No refresh
・ All inputs and outputs are TTL compatible
・ Easy memory expansion by CS1# andCS2
・ Common Data I/O
・ Three-state outputs: OR-tie capability
・ OE# prevents data contention in the I/O bus
・ Operation temperature: -40 ~ +85°C
