Description

The R1LV0816ABG is a family of low voltage 8-Mbit static RAMs organized as 524,288-words by 16-bit,fabricated by Renesas's high-performance 0.15um CMOS and TFT technologies.
The R1LV0816ABG is suitable for memory applications where a simple interfacing, battery operating and battery backup are the important design objectives.

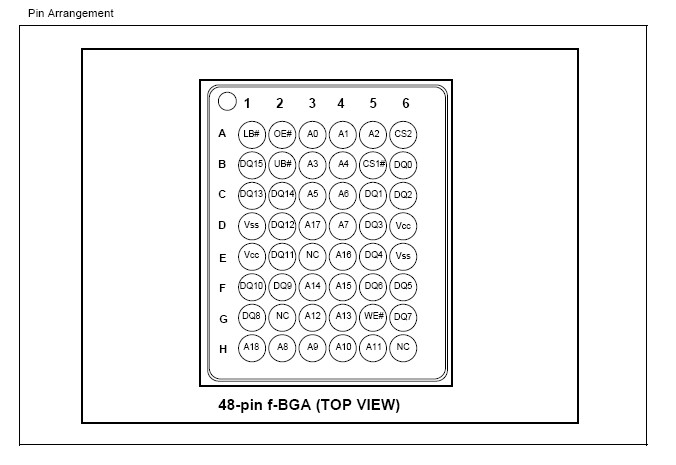

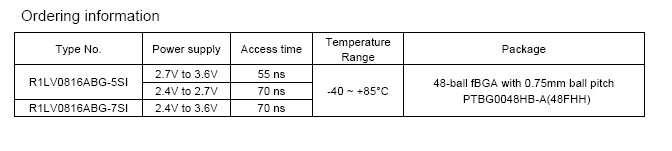

The R1LV0816ABG is packaged in a 48balls fine pitch ball grid array [f-BGA / 7.5 mm×8.5mm with the ball-pitch of 0.75mm and 6x8 array]. It gives the best solution for a compaction of mounting area as well as flexibility of wiring pattern of printed circuit boards.

Features

・ Single 2.4-3.6V power supply
・ Small stand-by current: 1.2μA (Vcc=3.0V, typ.)
・ No clocks, No refresh
・ All inputs and outputs are TTL compatible

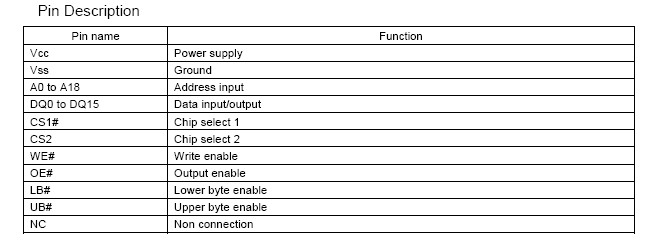

・ Easy memory expansion by CS1#, CS2, LB# and UB#
・ Common Data I/O
・ Three-state outputs: OR-tie capability
・ OE# prevents data contention in the I/O bus
・ Operation temperature: -40 ~ +85°C
