Description

HA17558B is dual bipolar op-amp with improved characteristics compared to HA17558A. It has wide bandwidth, low noise, high slew rate; wide operating voltage range and high gain characteristics.This product has a wide range of applications that is appropriate for audio application, as well as AC/DC converter.

Features

•  Wide bandwidth: 7 MHz
•  High speed: 3 V/μs
•  Low input noise voltage: 1 μVrms
•  Large DC voltage gain: 110 dB
•  Operating voltage: ±2 V to ±18 V
•  Package outline available in Pb free lead frame:

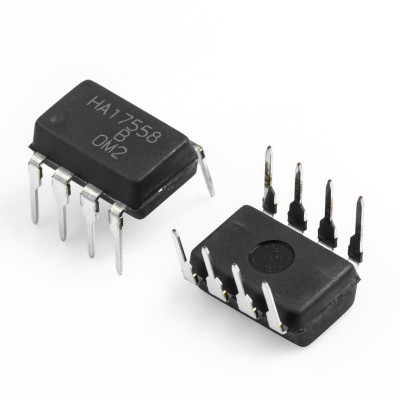

   DP-8

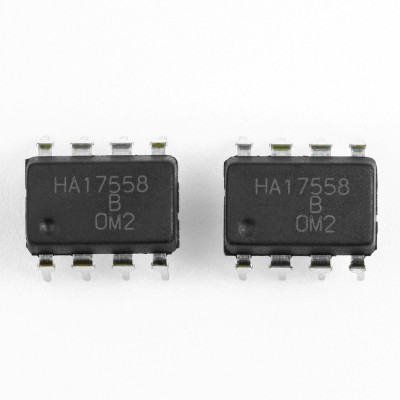

   SOP-8 (JEITA)
   SOP-8 (JEDEC)

Applications

•  Audio AC-3 decoder system
•  Audio amplifier
•  AC/DC converter

Ordering Information

Note:   This product is designed for consumer use and not for automotive.

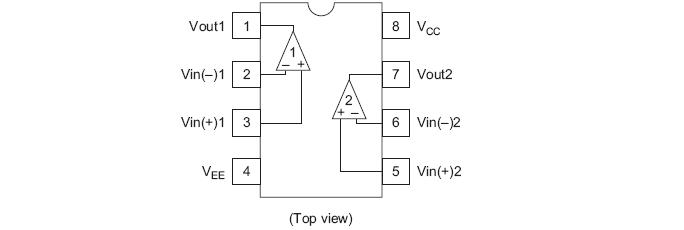

Pin Arrangement
