Description

HA17558B is dual bipolar op-amp with improved characteristics compared to HA17558A. It has wide bandwidth, low

noise, high slew rate; wide operating voltage range and high gain characteristics.

This product has a wide range of applications that is appropriate for audio application, as well as AC/DC converter.

Features

• Wide bandwidth: 7 MHz

• High speed: 3 V/µs

• Low input noise voltage: 1 µVrms

• Large DC voltage gain: 110 dB

• Operating voltage: ±2 V to ±18 V

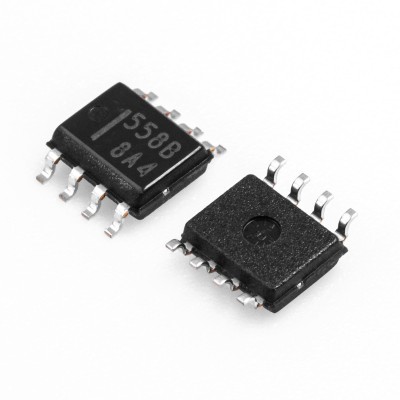

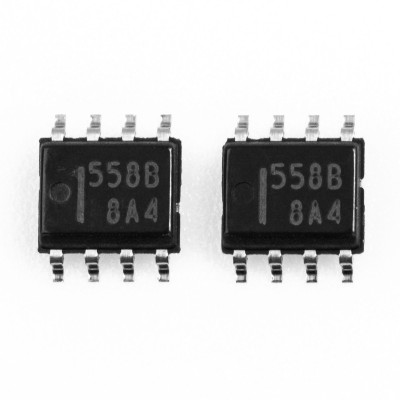

• Package outline available in Pb free lead frame:

DP-8

SOP-8 (JEITA)

SOP-8 (JEDEC)

Applications

• Audio AC-3 decoder system

• Audio amplifier

• AC/DC converter

Ordering Information

Part No.  Application  Package Code (Package

Name)

Packing Abbreviation

(Quantity)

HA17558B  PRDP0008AF-B (DP-8FV)  — (50 pcs/stick 1,000 pcs/box)

HA17558BF  PRSP0008DE-B (FP-8DGV)  EL (2,500 pcs/reel)

HA17558BRP

Commercial use

PRSP0008DD-C (FP-8DCV)  EL (2,500 pcs/reel)

Note:  This product is designed for consumer use and not for automotive and industry.
