HD74LS126A
品牌：瑞萨（Renesas）
产品：逻辑器件
在线阅读：HD74LS126A.pdf
HD74LS126A
Quadruple Bus Buffer Gates(with three-state outputs)
产品详情
Ordering Information
|
Part Name |
Package Type |
Package Code (Previous Code) |
Package Abbreviation |
Taping Abbreviation (Quantity) |
|
HD74LS126AFPEL |
SOP-14 pin(JEITA) |
PRSP0014DF-B (FP-14DAV) |
FP |
EL (2,000 pcs/reel) |
|
HD74LS126ARPEL |
SOP-14 pin(JEDEC) |
PRSP0014DE-A (FP-14DNV) |
RP |
EL (2,500 pcs/reel) |

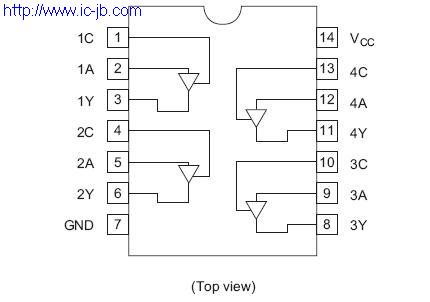

Pin Arrangement
Function Table
|
Inputs |
Output | |
|
C |
A |
Y |
|
L |
X |
Z |
|
H |
H |
H |
|
H |
L |
L |
Absolute Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
|
Supply voltage |
Vcc |
7 |
V |
|
Input voltage |
VIN |
7 |
V |
|
Power dissipation |
PT |
400 |
mW |
|
Storage temperature |
Tstg |
-65 to +150 |
°C |
