2SK1808

品牌：瑞萨（Renesas）

产品：MOSFET

在线阅读：2SK1808.pdf

2SK1808

Silicon N-Channel MOS FET

产品详情

Application

High speed power switching

Features

Low on-resistance
High speed switching
Low drive curren
No secondary breakdown
Suitable for switchingregulator, DC-DC converter

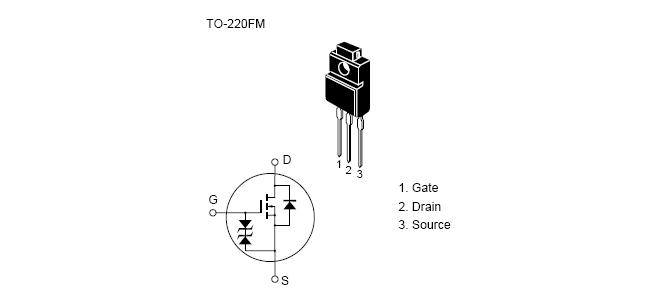

Outline

Absolute Maximum Ratings

Item Symbol Ratings Unit

Drain to source voltage VDSS 900 V

Gate to source voltage VGSS ±30 V

Drain current ID 4 A

Drain peak current ID(pulse)*1 10 A

Body to drain diode reverse drain current 　 IDR 4 A

Channel dissipation Pch*2 35 W

Channel temperature Tch 150 °C

Storage temperature Tstg –55 to +150 °C

Notes 1. PW 10 μs, duty cycle 1 %
2. Value at Tc = 25 °C
