Application
High speed power switching
Features
- Low on-resistance
- High speed switching
- Low drive current
- No secondary breakdown
- Suitable for switching regulator and DC-DC converter

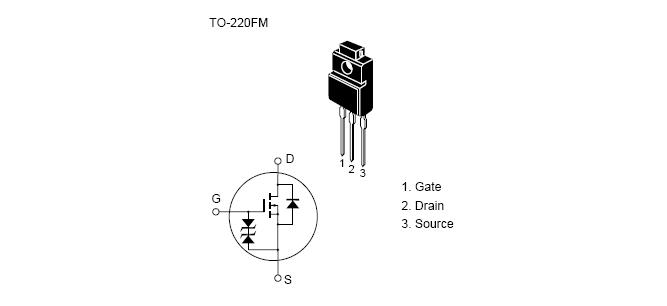

Outline
Item
Symbol
Ratings
Unit
Drain to source voltage
2SK1626
VDSS
450
V
2SK1627
500
Gate to source voltage
VGSS
±30
V
Drain current
ID
5
A
Drain peak current
ID(pulse)*1
20
A
Body to drain diode reverse drain current
IDR
5
A
Channel dissipation
Pch*2
35
W
Channel temperature
Tch
150
°C
Storage temperature
Tstg
–55 to +150
°C
2. Value at TC = 25°C
