HZ Series

Silicon Epitaxial Planar Zener Diode for Stabilized Power Supply

产品详情

Features

Low leakage, low zener impedance and maximum power dissipation of 500 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 1.6 V through 38 V of zener voltage provide flexible application.

Ordering Information

Type No.

Mark

Package Code

HZ Series

Type No.

DO-35

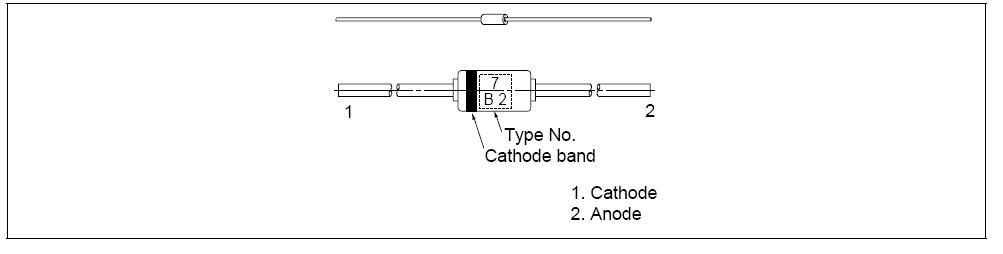

Pin Arrangement

Absolute Maximum Ratings

(Ta = 25°C)

Item

Symbol

Value

Unit

Power dissipation

Pd

500

mW

Junction temperature

Tj

175

°C

Storage temperature

Tstg

?55 to +175

°C

Electrical Characteristics

Test

Test

Test

VZ (V)*1

Condition

IR (μA)

Condition

rd (?)

Condition

Type

Grade

Min

Max

IZ (mA)

Max

VR (V)

Max

IZ (mA)

HZ2

A1

1.6

1.8

5

25

0.5

100

5

A2

1.7

1.9

A3

1.8

2.0

B1

1.9

2.1

5

5

0.5

100

5

B2

2.0

2.2

B3

2.1

2.3

C1

2.2

2.4

C2

2.3

2.5

C3

2.4

2.6

HZ3

A1

2.5

2.7

5

5

0.5

100

5

A2

2.6

2.8

A3

2.7

2.9

B1

2.8

3.0

B2

2.9

3.1

B3

3.0

3.2

C1

3.1

3.3

C2

3.2

3.4

C3

3.3

3.5

HZ4

A1

3.4

3.6

5

5

1.0

100

5

A2

3.5

3.7

A3

3.6

3.8

B1

3.7

3.9

B2

3.8

4.0

B3

3.9

4.1

C1

4.0

4.2

C2

4.1

4.3

C3

4.2

4.4

HZ5

A1

4.3

4.5

5

5

1.5

100

5

A2

4.4

4.6

A3

4.5

4.7

B1

4.6

4.8

B2

4.7

4.9

B3

4.8

5.0

Note:    1. Tested with DC.

Zener Voltage                                           Reverse Current                       Dynamic Resistance

Test

Test

Test

VZ (V)*1

Condition

IR (μA)

Condition

rd (?)

Condition

Type

Grade

Min

Max

IZ (mA)

Max

VR (V)

Max

IZ (mA)

HZ5

C1

4.9

5.1

5

5

1.5

100

5

C2

5.0

5.2

C3

5.1

5.3

HZ6

A1

5.2

5.5

5

5

2.0

40

5

A2

5.3

5.6

A3

5.4

5.7

B1

5.5

5.8

B2

5.6

5.9

B3

5.7

6.0

C1

5.8

6.1

C2

6.0

6.3

C3

6.1

6.4

HZ7

A1

6.3

6.6

5

1

3.5

15

5

A2

6.4

6.7

A3

6.6

6.9

B1

6.7

7.0

B2

6.9

7.2

B3

7.0

7.3

C1

7.2

7.6

C2

7.3

7.7

C3

7.5

7.9

HZ9

A1

7.7

8.1

5

1

5.0

20

5

A2

7.9

8.3

A3

8.1

8.5

B1

8.3

8.7

B2

8.5

8.9

B3

8.7

9.1

C1

8.9

9.3

C2

9.1

9.5

C3

9.3

9.7

HZ11

A1

9.5

9.9

5

1

7.5

25

5

A2

9.7

10.1

A3

9.9

10.3

B1

10.2

10.6

B2

10.4

10.8

B3

10.7

11.1

C1

10.9

11.3

C2

11.1

11.6

C3

11.4

11.9

Note:    1. Tested with DC.

Zener Voltage                                           Reverse Current                       Dynamic Resistance

Test

Test

Test

VZ (V)*1

Condition

IR (μA)

Condition

rd (?)

Condition

Type

Grade

Min

Max

IZ (mA)

Max

VR (V)

Max

IZ (mA)

HZ12

A1

11.6

12.1

5

1

9.5

35

5

A2

11.9

12.4

A3

12.2

12.7

B1

12.4

12.9

B2

12.6

13.1

B3

12.9

13.4

C1

13.2

13.7

C2

13.5

14.0

C3

13.8

14.3

HZ15

1

14.1

14.7

5

1

11.0

40

5

2

14.5

15.1

3

14.9

15.5

HZ16

1

15.3

15.9

5

1

12.0

45

5

2

15.7

16.5

3

16.3

17.1

HZ18

1

16.9

17.7

5

1

13.0

55

5

2

17.5

18.3

3

18.1

19.0

HZ20

1

18.8

19.7

2

1

15.0

60

2

2

19.5

20.4

3

20.2

21.1

HZ22

1

20.9

21.9

2

1

17.0

65

2

2

21.6

22.6

3

22.3

23.3

HZ24

1

22.9

24.0

2

1

19.0

70

2

2

23.6

24.7

3

24.3

25.5

HZ27

1

25.2

26.6

2

1

21.0

80

2

2

26.2

27.6

3

27.2

28.6

HZ30

1

28.2

29.6

2

1

23.0

100

2

2

29.2

30.6

3

30.2

31.6

HZ33

1

31.2

32.6

2

1

25.0

120

2

2

32.2

33.6

3

33.2

34.6

HZ36

1

34.2

35.7

2

1

27.0

140

2

2

35.3

36.8

3

36.4

38.0

Note:    1. Tested with DC.

2. Type No. is as follows; HZ2B1, HZ2B2, HZ36-3.
