HD74LS241
品牌：瑞萨（Renesas）
产品：逻辑器件
在线阅读：HD74LS241.pdf
HD74LS241
Octal Buffers/Line Drivers/Line Receivers(non inverted three-state outputs)
产品详情
Ordering Information
|
Part Name |
Package Type |
Package Code (Previous Code) |
Package Abbreviation |
Taping Abbreviation (Quantity) |
|
HD74LS241P |
DILP-20 pin |
PRDP (DP-20NEV) |
P |
— |
|
HD74LS241FPEL |
SOP-20 pin (JEITA) |
PRSP0020DD-B (FP-20DAV) |
FP |
EL (2,000 pcs/reel) |

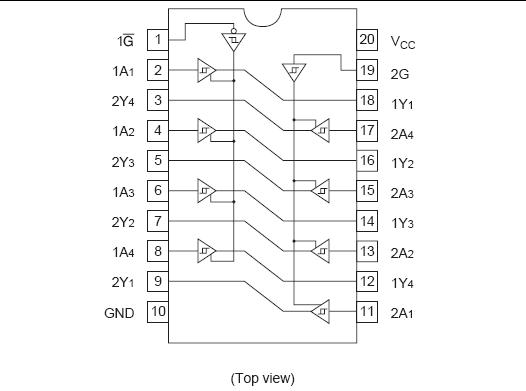

Pin Arrangement
Absolute Maximum Ratings
|
Item |
Symbol |
Ratings |
Unit |
|
Supply voltage |
VCC |
7 |
V |
|
Input voltage |
VIN |
7 |
V |
|
Power dissipation |
PT |
400 |
mW |
|
Storage temperature |
Tstg |
–65 to +150 |
°C |
