Description
The HD74HC139 contains two independent two-to-four-line decoders each with a single active low enable input (1G or 2G). Data on the slect inputs (1A and 1B or 2A and 2B) cause one of the four normally high outputs to go low
Features
- High Speed Operation: tpd (A, B to Y, 4 levels) = 14 ns typ (CL = 50 pF)
- High Output Current: Fanout of 10 LSTTL Loads
- Wide Operating Voltage: VCC = 2 V to 6 V
- Low Input Current: 1 μA max
- Low Quiescent Supply Current: ICC (static) = 4 μA max (Ta = 25°C)

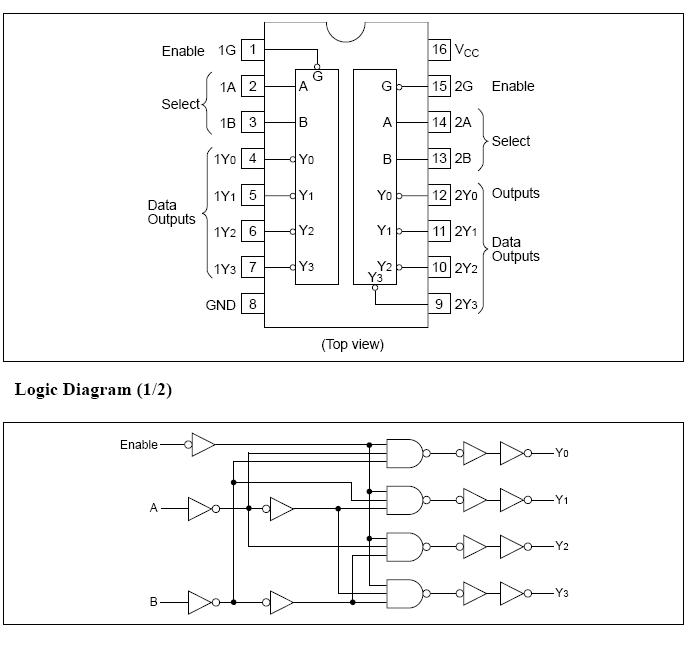

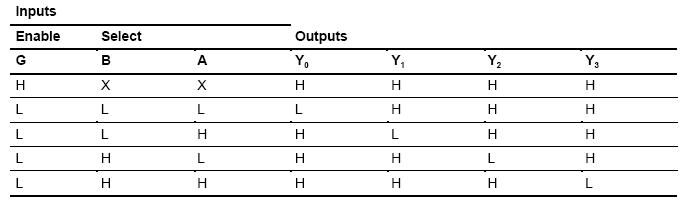

Function Table
Ordering Information
|
Part Name |
Package Type |
Package Code (Previous Code) |
Package Abbreviation |
Taping Abbreviation (Quantity) |
|
HD74HC139P |
DILP-16 pin |
PRDP0016AE-B (DP-16FV) |
P |
— |
|
HD74HC139FPEL |
SOP-16 pin (JEITA) |
PRSP0016DH-B (FP-16DAV) |
FP |
EL (2,000 pcs/reel) |
|
HD74HC139TELL |
TSSOP-16 pin |
PTSP0016JB-A (TTP-16DAV) |
T |
ELL (2,000 pcs/reel) |
Absolute Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
|
Supply voltage range |
VCC |
–0.5 to +7.0 |
V |
|
Input voltage |
VIN |
–0.5 to VCC + 0.5 |
V |
|
Output voltage |
VOUT |
–0.5 to VCC + 0.5 |
V |
|
Output current |
IOUT |
±25 |
mA |
|
DC current drain per VCC, GND |
ICC, IGND |
±50 |
mA |
|
DC input diode current |
IIK |
±20 |
mA |
|
DC output diode current |
IOK |
±20 |
mA |
|
Power dissipation per package |
PT |
500 |
mW |
|
Storage temperature |
Tstg |
–65 to +150 |
°C |
