Description

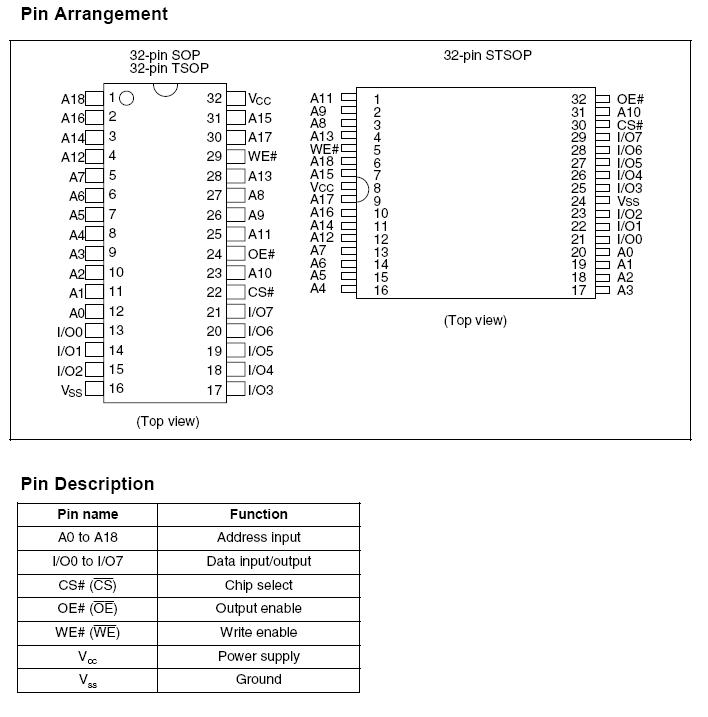

     The R1LV0408D is a 4-Mbit static RAM organized 512-kword × 8-bit, fabricated by Renesas’s high-performance 0.15μm CMOS and TFT technologies. R1LV0408D Series has realized higher density, higher performance and low power consumption. The R1LV0408D Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II and 32-pin STSOP

Features

•   Single 3 V supply: 2.7 V to 3.6 V

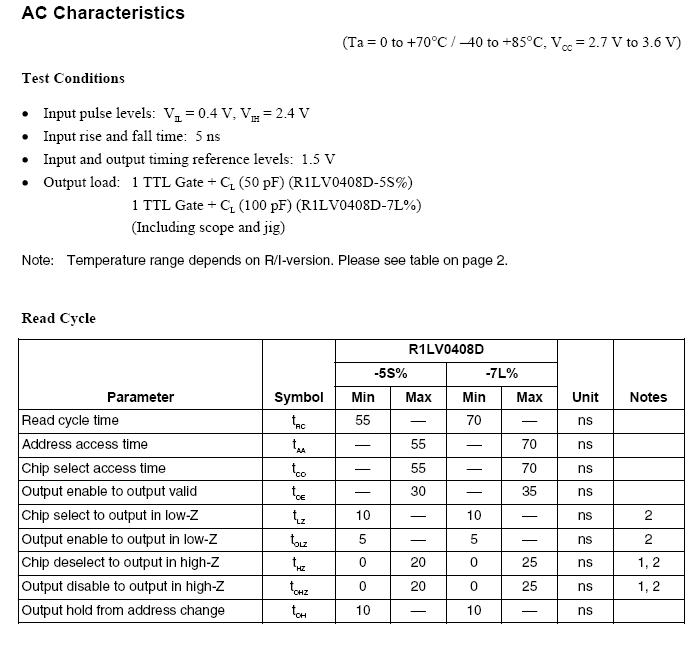

•   Access time: 55/70 ns (max)

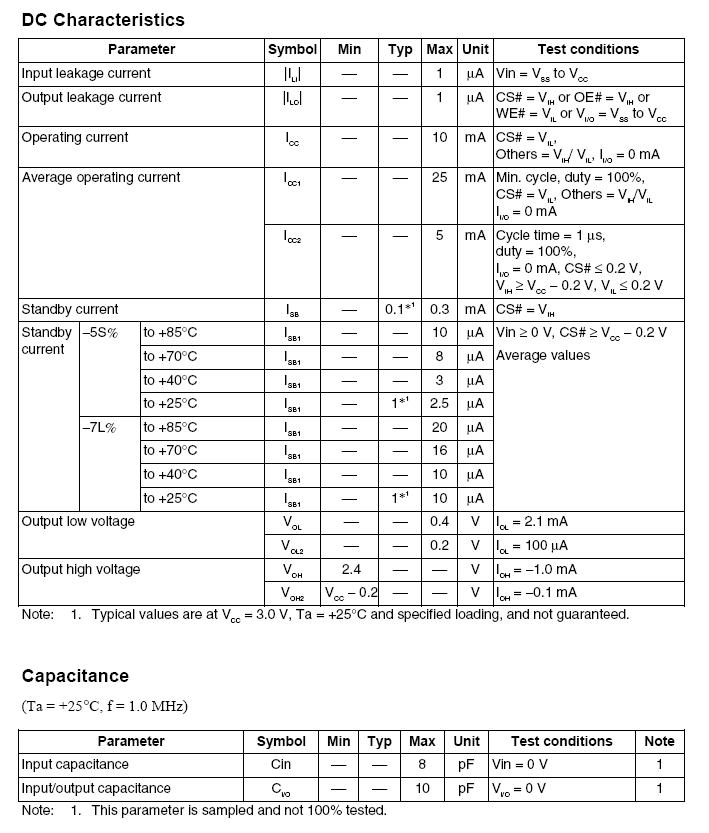

•   Power dissipation:
  -Standby: 3 μW (typ)

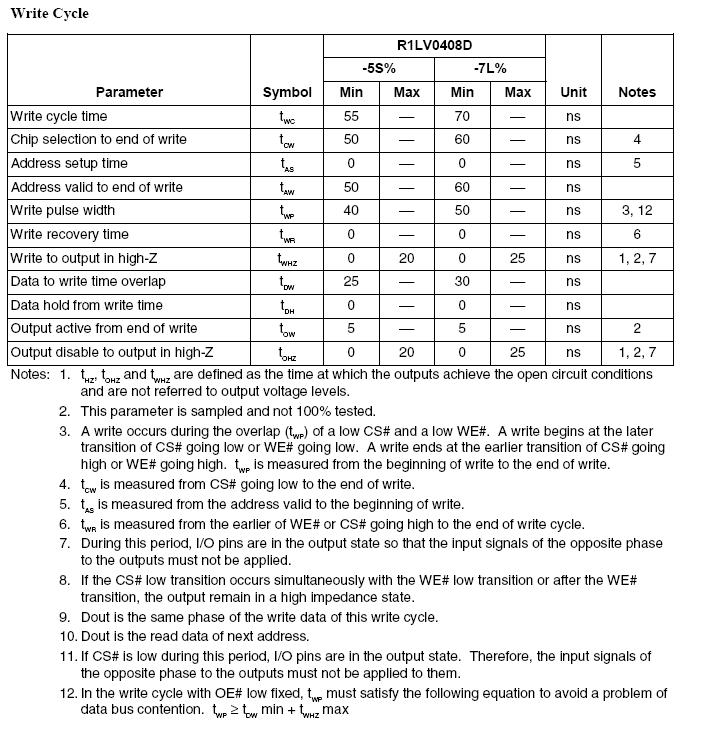

•  Equal access and cycle times
•  Common data input and output.
  - Three state output
•  Directly TTL compatible.
  - All inputs and outputs

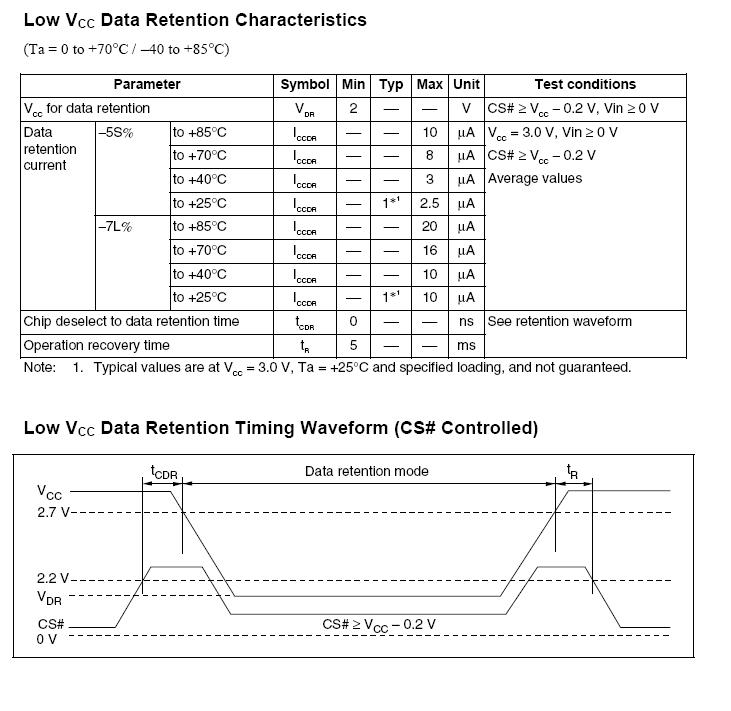

•  Battery backup operation.

Ordering Information
