Description

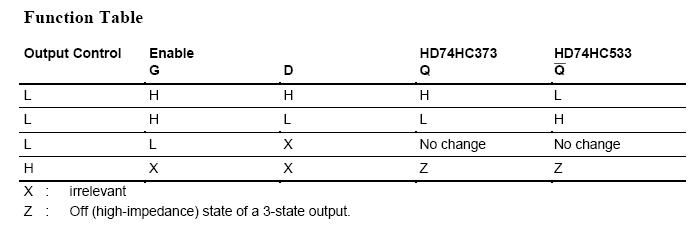

When the latch enable input is high, the Q outputs of HD74HC373 will follow the D inputs and the Q outputs of HD74HC533 will follow the inversion of the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements.

Features

•   High Speed Operation: tpd (D to Q) = 16 ns typ (CL = 50 pF)
•   High Output Current: Fanout of 15 LSTTL Loads
•   Wide Operating Voltage: VCC = 2 to 6 V
•   Low Input Current: 1 mA max
•   Low Quiescent Supply Current: ICC (static) = 4 mA max (Ta = 25°C)

Ordering Information
