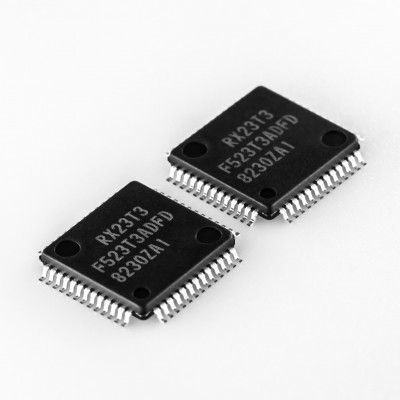

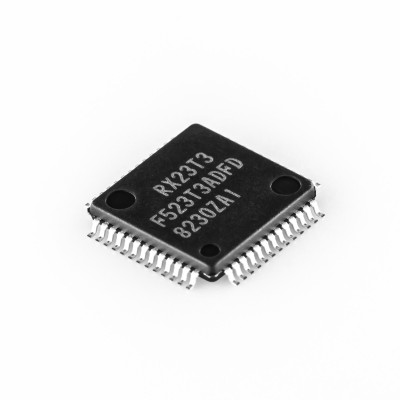

32-bit RX CPU core

 Max. operating frequency: 40 MHz

Capable of 65.6 DMIPS in operation at 40 MHz

 Enhanced DSP: 32-bit multiply-accumulate and 16-bit

multiply-subtract instructions supported

 Built-in FPU: 32-bit single-precision floating point

(compliant to IEEE754)

 Divider (fastest instruction execution takes two CPU clock

cycles)

 Fast interrupt

 CISC Harvard architecture with 5-stage pipeline

 Variable-length instructions, ultra-compact code

 On-chip debugging circuit

 Memory protection unit (MPU) supported

■ Low power design and architecture

 Operation from a single 2.7-V to 5.5-V supply

 Three low power consumption modes

■ On-chip code flash memory, no wait states

 128-/64-Kbyte capacities

 On-board or off-board user programming

■ On-chip SRAM, no wait states

 12 Kbytes of SRAM

■ DMA

 DTC: Four transfer modes

■ Reset and supply management

 Seven types of reset, including the power-on reset (POR)

 Low voltage detection (LVD) with voltage settings

■ Clock functions

 Main clock oscillator frequency: 1 to 20 MHz

 External clock input frequency: Up to 20 MHz

 PLL circuit input: 4 MHz to 12.5 MHz

 On-chip low-speed oscillator, on-chip high-speed

oscillator, dedicated on-chip oscillator for the IWDT

 Clock frequency accuracy measurement circuit (CAC)

■ Independent watchdog timer

 15-kHz on-chip oscillator produces a dedicated clock

signal to drive IWDT operation.

■ Useful functions for IEC60730 compliance

 Self-diagnostic and disconnection-detection assistance

functions for the A/D converter, clock frequency accuracy

measurement circuit, independent watchdog timer, RAM

test assistance functions using the DOC, etc.

■ MPC

 Multiple locations are selectable for I/O pins of peripheral

functions
